Field Enhancer Build Guide Back-Plane
So you just picked up your new Field Enhancer Back-Plane. How do you install it? Is it that difficult? Id say the difficulty rating is a 2/10. If you have both hands its a 1/10. This is the best option if you have a Proxmark 3X or other Proxmark variant that has a Midboard populated with components.
01
Remove Screws
Remove the (4) M2 screws on the bottom of the Proxmark 3.
02
​Add Standoffs
​Add the (4) included standoffs where the 4 screws once were.
03
Place Back-Plane and secure with screws
​​

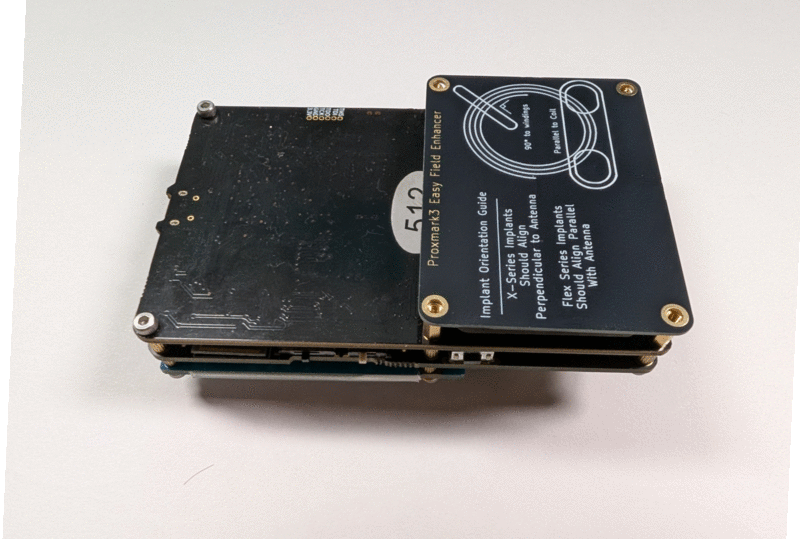

The Back-Plane has 2 Silkscreen options. One with a logo, and another with an implant placement guide. Choose which style you want face up.
​
Next secure with the (4) M2 screws you just removed.
04
Enjoy Increased Range
(Optional: Relocate LF Antenna)
You're done! You can rejoice and admire your new and improved Proxmark 3 or 3x. If you're feeling adventurous, move your LF antenna to the back and make it your new Front!
